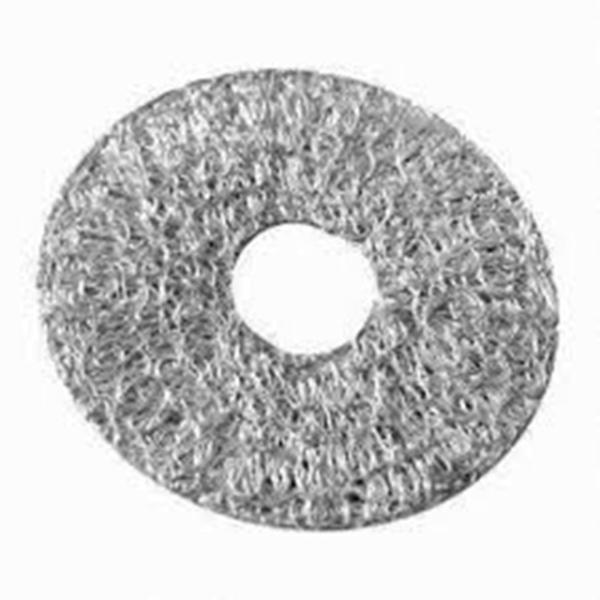

EMI shielding compressed knitted wire mesh washer
Typical applications for conductive optical grids include EMI/RFI shielding of electronic displays and enclosures used in:
• Military applications – requiring the attenuation of radiated
EMI/RFI emissions and susceptibility per MIL-STD-461 and MIL-STD-464
• Rugged computers, tactical radios, sensors and vehicle-mounted displays
• Secure communication systems to meet tempest and FCC compliance and for homeland security
• Medical displays – MRI rooms, display and observation windows
• Aircraft Shielding – display and instrument panels, aircraft windows and doors
• Industrial controls, heavy equipment, shipboard electronic systems
• Test and measurement equipment – telecommunication, signal analyzers and generators
- Brass wire: copper 65%,zinc35%
- Purple copper wire: copper 99.8%
- Phosphorus copper wire :copper 85%-90%,tin 5%-15%
| Product Features |
| All mesh gasket’s cross section are rectangular, round,round with tail and double round with tail. |
Materials are available intin-plated phosphor
bronze (Sn/Ph/Bz), tin-plated copper-clad steel (Sn/Cu/Fe), silver-plated brass (Ag/Brass), Monel, and aluminum(Al). |
| Elastomeric core has various function(anti-chemistry, thermal resistance and water proof) for elasticity. |
| Selection shape |
| Solid Round Type |
| Solid Rectangular Type |
| Hollow Round Type |
| Solid Round with Fin Type |
| Hollow Round with Fin Type |
| |
Mesh/inch |
Wire dia(mm/inch) |
Aperture(mm) |
|
Stainless steel wire mesh
|
100 |
0.089/0.0035 |
0.17 |
| 110 |
0.1060/0.0040 |
0.1295 |
| 120 |
0.0904/0.0037 |
0.1168 |
| 150 |
0.0660/0.0026 |
0.1041 |
| 160 |
0.0635/0.0025 |
0.0965 |
| 180 |
0.0584/0.0023 |
0.0838 |
| 200 |
0.0533/0.0021 |
0.737
|
Production range:
- Width: Standard 1M, Special requirement is accepted.
- Length:30M/roll
- Size:Standard 60/100/150 mesh/inch
- Faraday cage shielding stainless steel wire mesh
Product Description
• Material: SUS302,201, 304, 304L, 316, 316L, 310, 310S etc
• Weave: plain, twill, dutch
• Mesh: 1-2800 mesh
• Application: EMI/RFI shielding, Faraday cages, RF window,
• Specification list for faraday cage shielding stainless steel wire mesh
