10G 18G 40GHz pyramid absorber for emc anechoic chamber

Brand Name : HAOZHUO

Model Number : SA

Certification : CE RoHS

Place of Origin : P.R.CHINA

MOQ : 1000 PCS

Price : USD 500 PER PCS

Supply Ability : 2000 PCS PER WEEK

Packaging Details : CARTON

material : pu

base size : 500*500

base height : 15

number of pyramid : 36*36

total height : 200

weight : 1.1KG

frequency : 10GHz

pyramid height : 15

application : emc anechoic chamber

approval : ce rohs

Contact Now

TYPE HEIGHT REFLECTIVITY
40 15 10 3 1.5 0.5 0.3 0.2 0.15
HZ-100 100 50 45 40 30 20
HZ-150 150 50 50 45 33 25
HZ-200 200 50 50 50 37 30 17
HZ-300 300 50 50 50 40 33 20
HZ-400 400 50 50 50 45 40 25 17
HZ-500 500 50 50 50 45 40 30 20 17
HZ-600 600 50 50 50 50 40 30 25 20
HZ-700 700 50 50 50 50 43 35 30 20 17
HZ-800 800 50 50 50 50 45 36 30 20 17
HZ-1000 1000 50 50 50 50 45 38 35 25 20

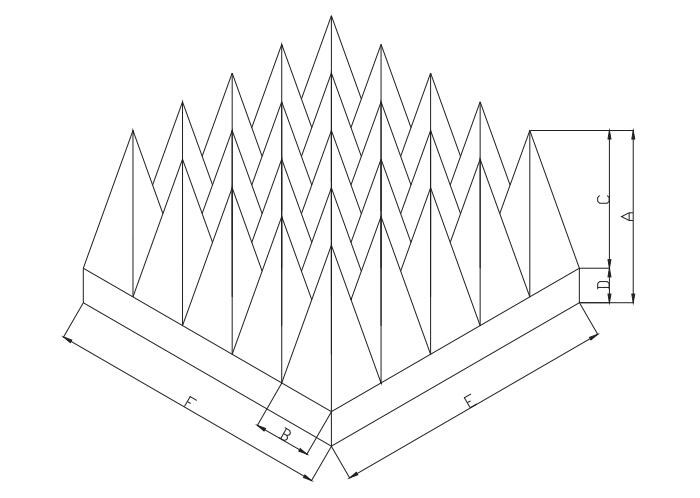

TYPE BASE SIZE NUMBER OF PYRAMIDAL WEIGHT TOTAL HEIGHT BASE HEIGHT PYRAMIDAL HEIGHT

PYRAMIDAL

WIDTH
HZ-30 500*500 36*36 1.1 30 15 15 14
HZ-50 500*500 20*20 1.8 50 20 30 25
HZ-70 500*500 20*20 2.5 70 20 50 25
HZ-100 500*500 13*13 3.3 100 25 75 38
HZ-150 500*500 9*9 4.8 150 30 120 56
HZ-200 500*500 7*7 6.3 200 40 160 71
HZ-300 500*500 5*5 9 300 60 240 100
HZ-400 500*500 4*4 12 400 70 330 125
HZ-500 500*500 3*3 15 500 80 420 167
HZ-600 400*400 2*2 18 600 90 510 200
HZ-700 250*500 1*2 21 700 100 600 250
HZ-800 250*500 1*2 24 800 100 700 250
HZ-1000 334*334 1*1 30 1000 150 850 3

Broadband absorbers suitable for in-door measurements.
Below 100mm thickness, used for small shielding room
Above 100mm thickness, used for huge shielding room or dark room
It is available in other sizes and customer specified configurations upon request
Used in making microwave anechoic chambers for performing measurements like RCS,
antenna Measurements etc.

10G 18G 40GHz pyramid absorber for emc anechoic chamber

Using polyurethane foam as matrix materials and with warter-proof coating on the surface ,the absorption element is carbon, dust-free drop;usually the color of product surface is light blue ,of course ,the surface color could be changed as customization.
Product meets the testing standard of NRL8093 (US),all raw materials of comply with RoHS,by using flame retardant material, no volatilization,no abnormal odour, non-toxicity;materials is stable after a long-term use .
